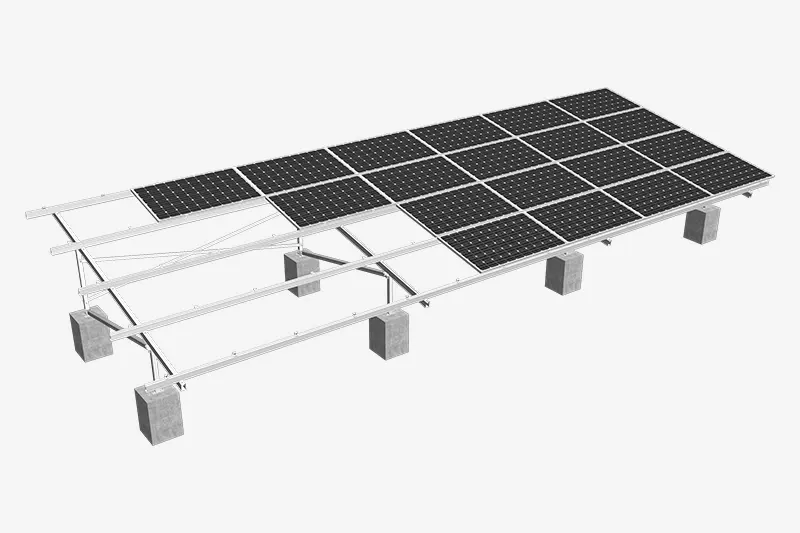

Product Application Examples
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Quick Modular Kit Fixation
Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
Bracket details
Technical Parameter
| Type | Ground |

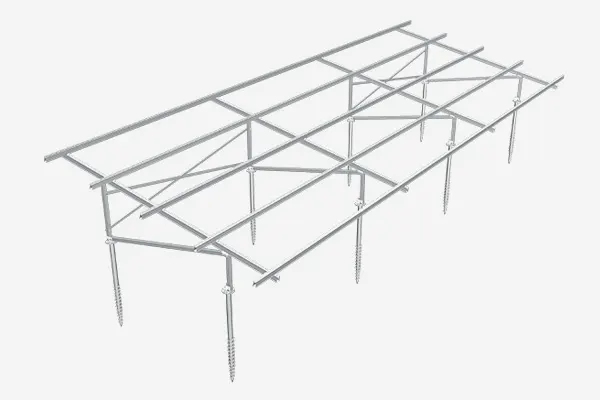

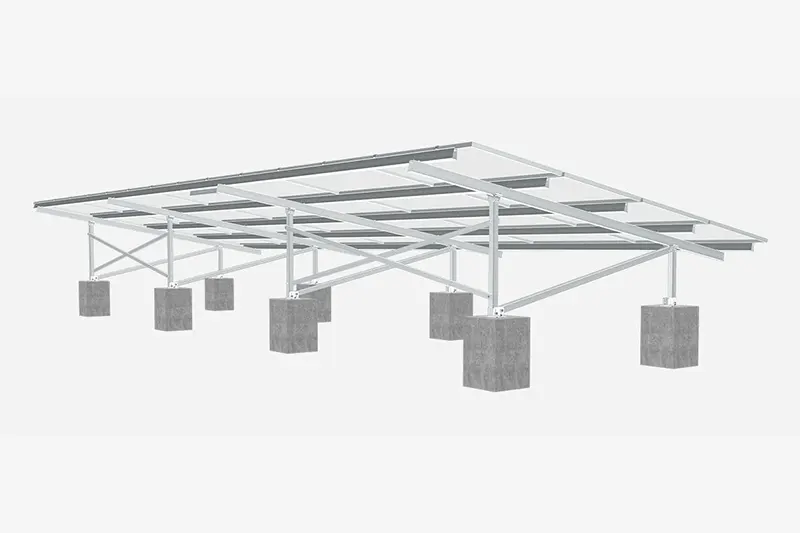

| Bottom Support | Cement foundation, Helical piles |
| Installation Angle | 0-60° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/㎡ |
| Height From the Ground | 500-2000mm |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | AL6005-T5 (surface anodized) |
| Fastener Material | Zinc-nickel alloy & stainless steel SUS304 |
| Parts Material | AL6005-T5 (surface anodized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Installationsvideo

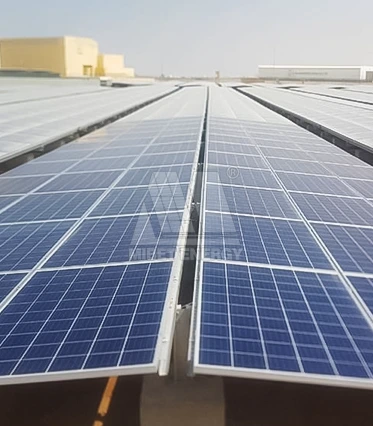

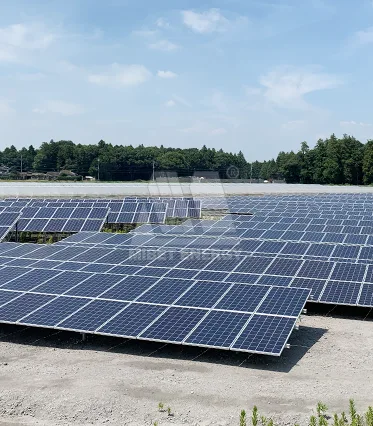

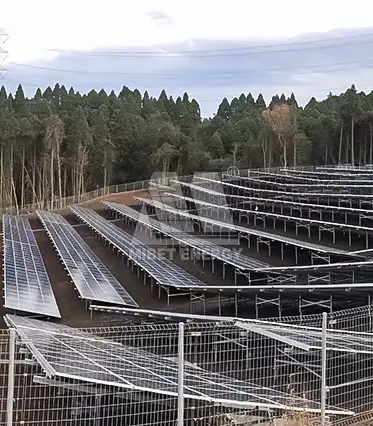

Projects Using PGT4
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
