MRac Solar Ground Mounting System PGT2

MRac solar ground mounting system PGT2 is a highly pre-assembled ground mounting system, which can be applied to the installation of large commercial and utility scale solar PV projects. Made of high quality aluminum material, PGT2 has excellent corrosion resistance performance. The single-pile patented structure design saves installation time and cost, with good compatibility to varied solar modules.

Product Application Examples

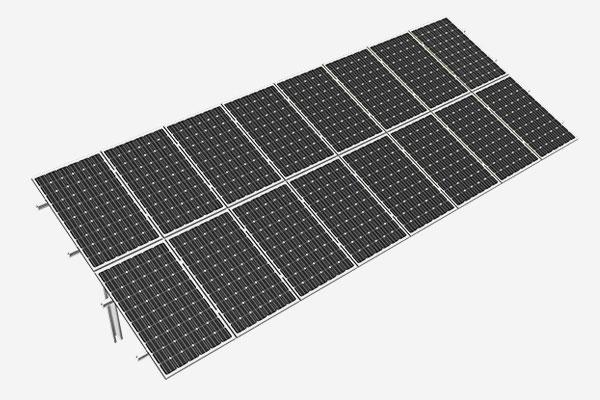

Application example of ground PV system PGT2

Features

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Symmetrical Rail Application

Applying the symmetrical rail design, saving material cost with stable enough structure strength, making whole system more cost-effective.

Single-Pile Design

Single-pile design reduce half of the ramming time, saving the construction cost.

Structure Configuration Multi-Options

Single or double embrace bars structure configuration available to meet varied projects requests.

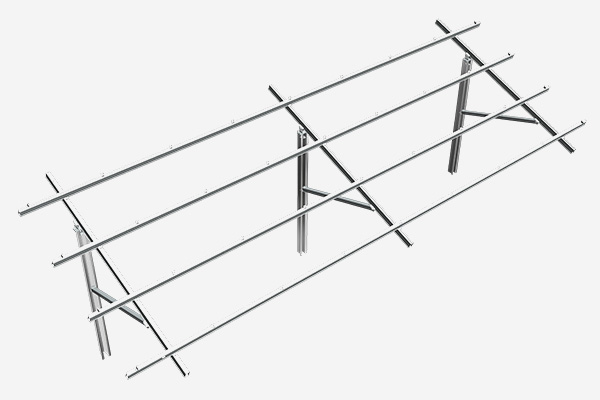

Ground Solar Racking PGT2 Details

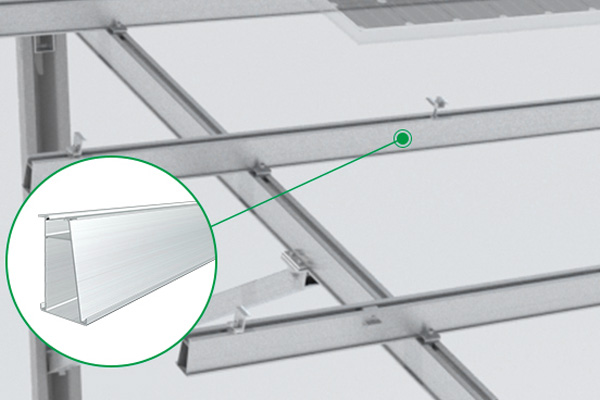

Bracket details


Ground Solar Racking PGT2 Details
Ground Solar Racking PGT2 Details

Technical Parameter

TypeGround
Bottom SupportCement foundation
Installation Angle0-60°
Wind Load60m/s
Snow Load1.6KN/㎡
Height From the Ground500-2000mm
Panel Framingframed, frameless
Panel Orientationhorizontal, vertical
Design StandardsAS/NZS 1170, DIN 1055, JIS C8955:2017,
 International Building Code: IBC 2009,
 California Building Code: CBC 2010;
Bracket MaterialQ235B (hot-dip galvanized) & AL6005-T5 (surface anodized)
Fastener MaterialZinc-nickel alloy & stainless steel SUS304
Parts MaterialAL6005-T5 (surface anodized)
Bracket ColorNatural silver or colored according to customer requirements
Warranty10 years

Service and Support

● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
