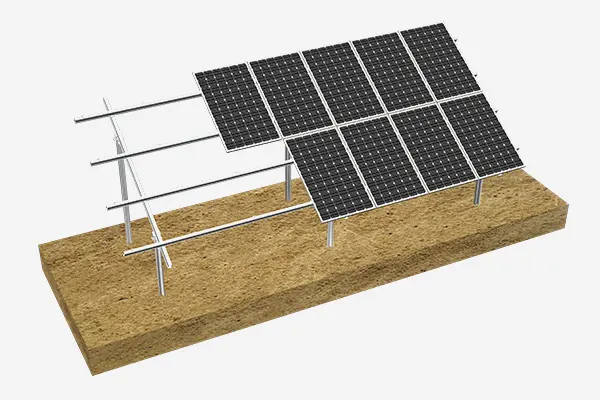

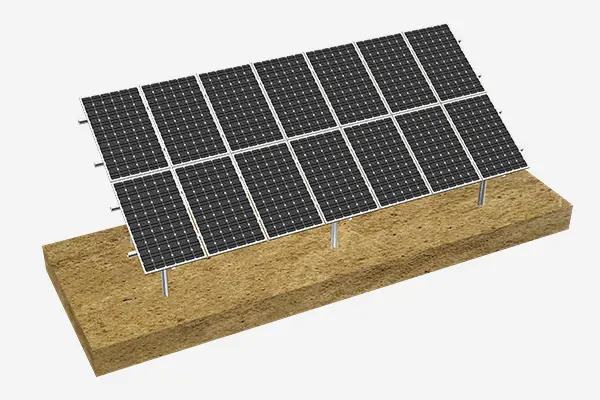

Product Application Examples
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

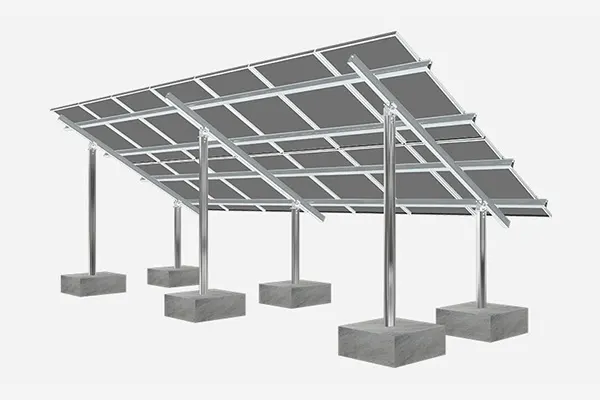

Dual-Pile Design
Dual-pile design, no embracing bar request, saving material cost.
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
Compatible to Varied Solar Modules
With MRac module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
Bracket details
Technical Parameter
| Type | Ground |
| Bottom Support | Cement foundation |
| Installation Angle | 0-60° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/㎡ |
| Height From the Ground | 500-2000mm |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | Q235B (hot-dip galvanized), AL6005-T5 (surface anodized) |
| Fastener Material | Zinc-nickel alloy & stainless steel SUS304 |
| Parts Material | AL6005-T5 (surface anodized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
