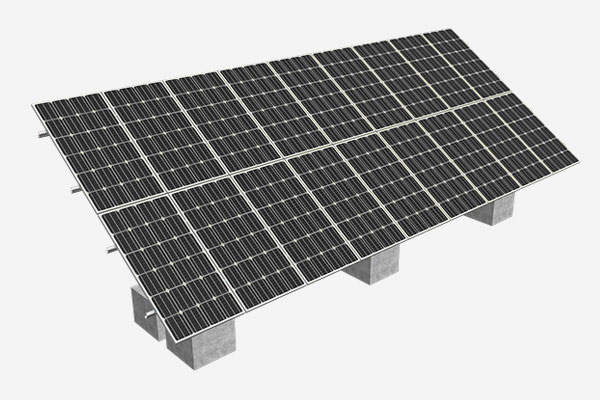

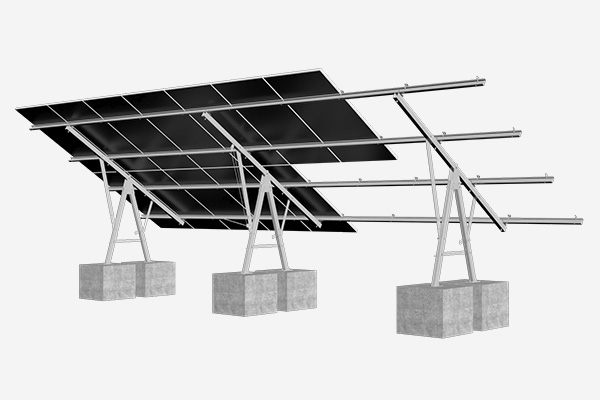

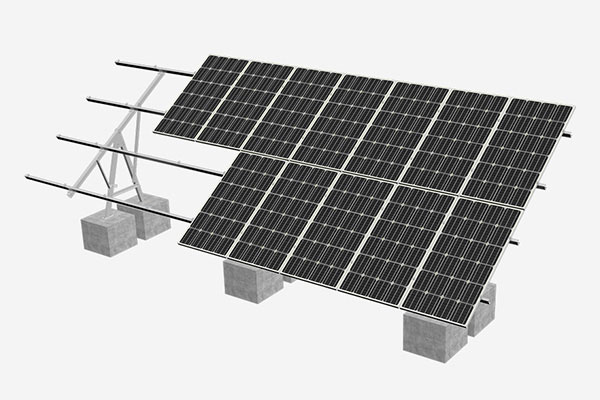

Product Application Examples
Features
Adaptable to different environments
Suitable for different ground environments and higher power generation efficiency.
Professional structural design
Ensure the overall stability and strength of the system, and bracket height pre-assembly; the site only needs fasteners to fix the splicing to complete the installation.
Adjustable angle design
The racking system can be manually adjusted to the required angle, allowing for higher power generation efficiency and greater returns.
Compatible with different PV modules
Free and flexible to support various types of photovoltaic modules.

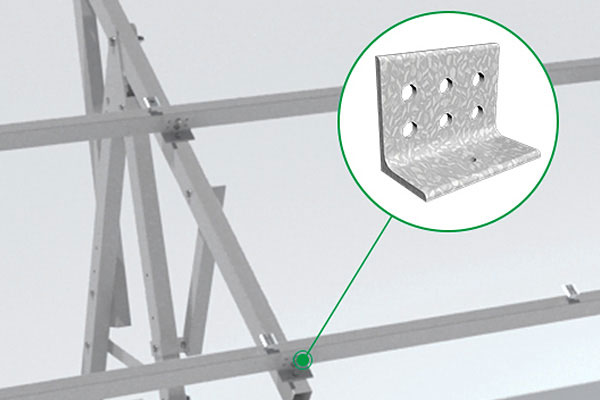

Bracket details
Technical Parameter
| Type | Ground |
| Bottom Support | Cement foundation |
| Installation Angle | 10-40° |
| Wind Load | 40m/s |
| Snow Load | 0.8KN/㎡ |
| Height From the Ground | 1000+mm |
| Panel Framing | framed, frameless |
| Panel Orientation | horizontal, vertical |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017, |
| International Building Code: IBC 2009, | |
| California Building Code: CBC 2010; | |
| Bracket Material | Q235B (hot-dip galvanized) |
| Fastener Material | Zinc-nickel alloy & stainless steel SUS304 |
| Parts Material | Q235B (hot-dip galvanized) |
| Bracket Color | Natural silver or colored according to customer requirements |
| Warranty | 10 years |
Service and Support
● Our sales team will provide you with basic product introduction and training.
● Our technical team will design a complete solution according to your project requirements.
● We provide installation guides and online services for the solar mounting system.
● Provide 10-year warranty service.
